%實驗二：時域采樣與頻域采樣
%時域采樣

%原信號
Tp=64/1000;%觀測時間64ms?
Fs=1000;??T=1/Fs;?
M=Tp*Fs;%取樣點數64點
n=0:M-1;t=n*T;
A=444.128;a=pi*50*2^0.5;w=pi*50*2^0.5;
xnt=A*exp（-a*t）.*sin（w*t）;
Xk=T*fft（xntM）;???%M=64點FFT[xnt]
figure（1）
subplot（421）;??plot（nxnt）;title（‘原信號波形‘）;
k=0:M-1;??wk=k/Tp;?
subplot（422）;plot（wkabs（Xk））;title（‘Fs=1KHz幅頻特性‘）;
xlabel（‘f/Hz‘）;ylabel（‘幅度（H1（jf））‘）;

%采樣頻率1KHz
Fs=1000;T=1/Fs;?%采樣頻率1KHz
M=Tp*Fs;%取樣點數64點
n=0:M-1;t=n*T;
A=444.128;a=pi*50*2^0.5;w=pi*50*2^0.5;
xnt=A*exp（-a*t）.*sin（w*t）;
Xk=T*fft（xntM）;???%M=64點FFT[xnt]
subplot（423）;??stem（nxnt‘.‘）;title（‘Fs=1KHz采樣序列‘）;
k=0:M-1;?wk=k/Tp;
subplot（424）;plot（wkabs（Xk））;title（‘Fs=1KHz幅頻特性‘）;
xlabel（‘f/Hz‘）;ylabel（‘幅度（H1（jf））‘）;

%采樣頻率300Hz
Fs=300;T=1/Fs;??M=Tp*Fs;n=0:M-1;t=n*T;
A=444.128;a=pi*50*2^0.5;w=pi*50*2^0.5;
xnt=A*exp（-a*t）.*sin（w*t）;
Xk=T*fft（xntM）;?
subplot（425）;?stem（nxnt‘.‘）;title（‘Fs=300Hz采樣序列‘）;
k=0:M-1;?wk=k/Tp;
subplot（426）;plot（wkabs（Xk））;title（‘Fs=300Hz幅頻特性‘）;
xlabel（‘f/Hz‘）;ylabel（‘（H2（jf））‘）;

%采樣頻率200Hz
Fs=200;T=1/Fs;??M=Tp*Fs;n=0:M-1;t=n*T;
A=444.128;a=pi*50*2^0.5;w=pi*50*2^0.5;
xnt=A*exp（-a*t）.*sin（w*t）;
Xk=T*fft（xntM）;?
subplot（427）;??stem（nxnt‘.‘）;title（‘Fs=200Hz采樣序列‘）;
k=0:M-1;??wk=k/Tp;
subplot（428）;plot（wkabs（Xk））;title（‘Fs=200Hz幅頻特性‘）;
xlabel（‘f/Hz‘）;ylabel（‘（H3（jf））‘）;

%=========================================================================%

%頻域采樣
M=27;N=32;n=0:M;
xn=（n>=0&n<=13）.*（n+1）+（n>=14&n<=26）.*（27-n）+（n<0|n>26）.*0;?????%產生x（n）
Xk=fft（xn1024）;??????????????????????????????????%1024點FFT[x（n）]?
k=0:1023;
wk=2*k/1024;?????????%連續頻譜圖的橫坐標取值
figure（2）
subplot（321）;?plot（wkabs（Xk））;?title（‘FT[x（n）]‘）;
xlabel（‘w/\pi‘）;ylabel（‘|X（e^j^\w）|‘）;axis（[010200]）;
subplot（322）;?stem（nxn‘.‘）;?title（‘x（n）‘）;
xlabel（‘n‘）;ylabel（‘x（n）‘）;axis（[032020]）

k=0:N-1;????????????????%離散頻譜圖的橫坐標取值
X32k=fft（xn32）;??????????????????????????????????%32點FFT[x（n）]
x32n=ifft（X32k）;??????????????????????????????????%32點IFFT[X32（k）]得到x32（n）
subplot（325）;stem（kabs（X32k）‘.‘）;title（‘32點頻域采樣‘）;
xlabel（‘k‘）;ylabel（‘|X_3_2（k）|‘）;axis（[0160200]）
n1=0:N-1;
subplot（326）;stem（n1x32n‘.‘）;title（‘32IDFT[X_3_2（k）]‘）;
k=0:N/2-1;?????????????%離散頻譜圖的橫坐標取值?
X16k=X32k（1:2:N）;???????%隔點抽取X32（k）得到X16（k）
x16n=ifft（X16kN/2）;??%16點IFFT[X16（k）]得到x16（n）
subplot（323）;stem（kabs（X16k）‘.‘）;title（‘16點頻域采樣‘）;
xlabel（‘k‘）;ylabel（‘|X_1_6（k）|‘）;axis（[080200]）
n1=0:N/2-1;???????????
subplot（324）;stem（n1x16n‘.‘）;title（‘16IDFT[X_1_6（k）]‘）;
xlabel（‘n‘）;ylabel（‘x_1_6（n）‘）;axis（[032020]）
xlabel（‘n‘）;ylabel（‘x_3_2（n）‘）;axis（[032020]）

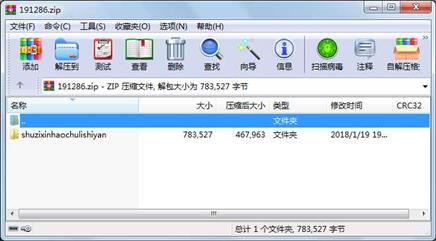

?屬性????????????大小?????日期????時間???名稱
-----------?---------??----------?-----??----
